Némo 10.4 m 25 pax diesel

nemo 10.4m 25pax diesel

Description

This aluminum ship 10.4 m long and 3.5 m wide is for diving clubs or can be used as a passenger’s vessel. She is designed to French standards, can be used as CE or NUC in maritime or in closed waters. Her CE capacity is 24 divers plus the pilot, it should be limited to 12 passengers as NUC for passenger boat by French approvals.

As part of the Nemo range designed by the Pierre DELION agency, this boat benefits from all the experience and expertise of the architect on this type of program. Her layout is rational and efficient, her deck offers comfortable seating, good access to bottles and circulation spaces. A T-Top is offered as standard for rain or sun protection.

A particular attention was given to water access of divers that can be done by parrot scales located on the back platform or at the two sided gates.

She is available with gasoline outboard or diesel Inboard in Z-Drive with or without electric Hybridation as well as full electric.

Deck Layout

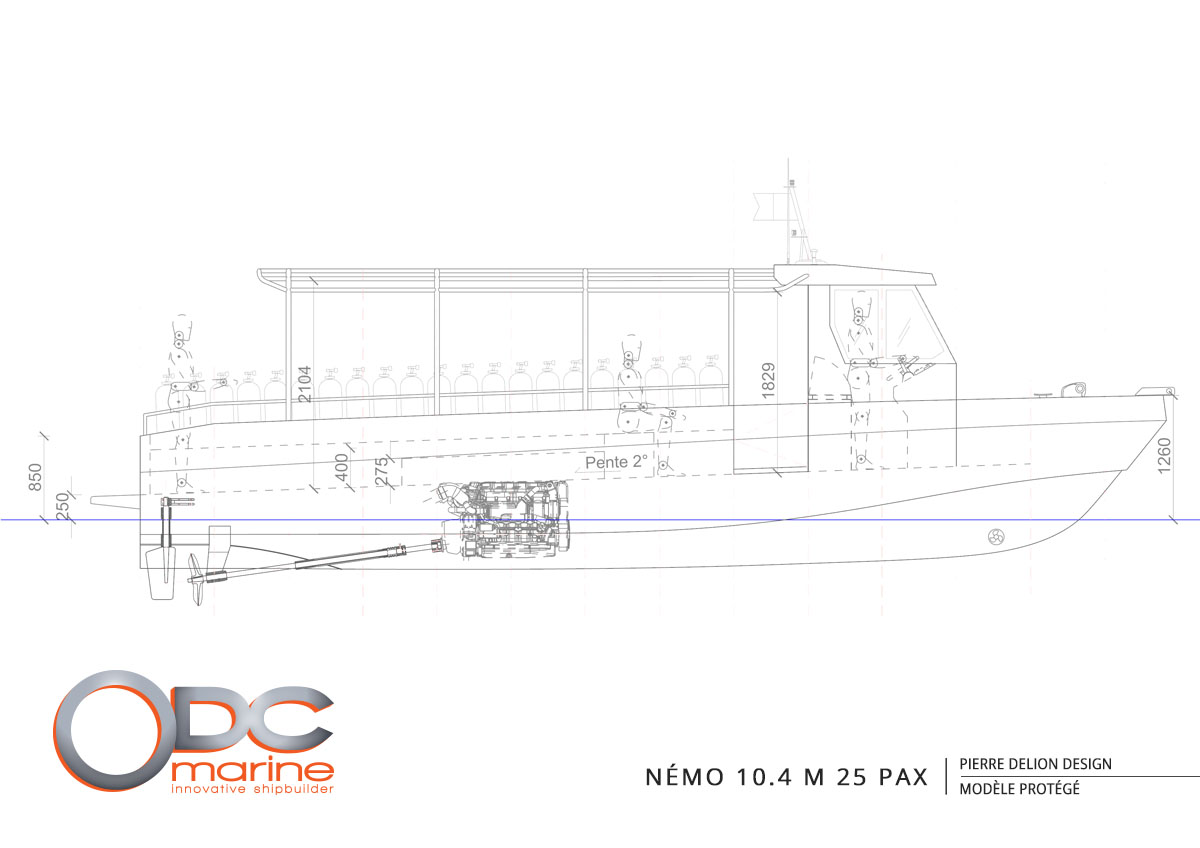

Plan Némo 10.4 m 25 pax

Plan Némo 10.4 m 25 pax

  • Main Specification
  • Propulsion
  • Performances
  • Pax25
    Hull TypeMonohull
    Hull Length10.40 m
    Hull Beam3.50 m
    Loaded Draft1.15 m
    Light Air Draft(mast folded)2.60 m
    MaterialAluminium
    Light displacement 4.20 T
    CertificationNUC/CE
    ArchitectPierre Delion
    Type de propulsionDiesel
    Type de propulsionInboard
    Puissance maxJohn Deer 300 Ch
    Capacité gasoil300 L
    Batteries TypeNA
    Battery Charger Input V/ANA
    Battery Charger Output V/ANA
    Charging TimeNA
    Max Speedapprox 20 knots
    Max Speed on batteriesNA
    Cruising speed on batteriesNA
    Autonomy @cruising speed on batteriesNA
    Range @cruising speed on batteriesNA

    Plus de photos
