Mono 12 m 50 pax diesel

Mono 50 pax

Description

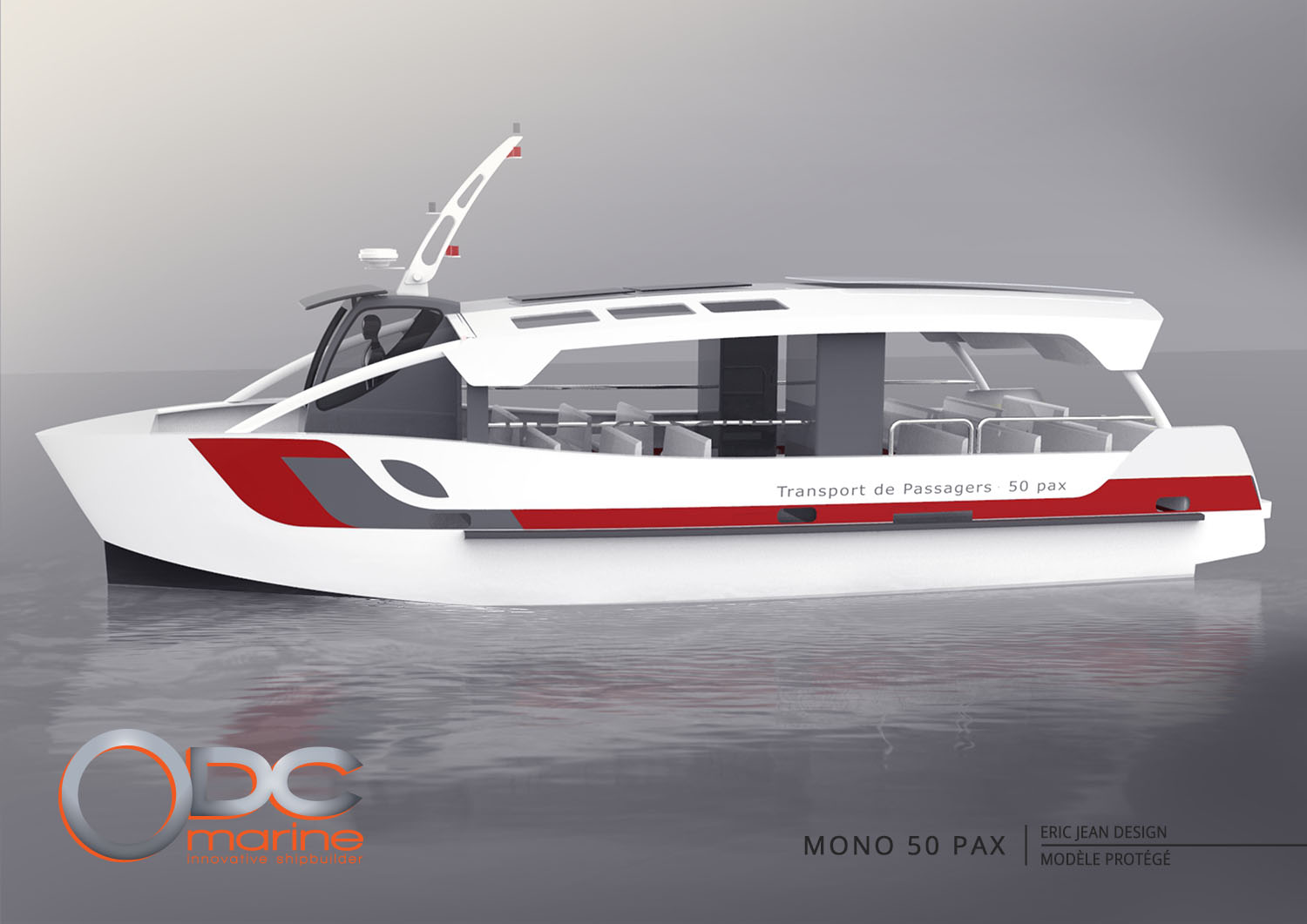

This aluminum passengers shuttle, 12 m long and 4.2 m wide, is approved to maritime French standards. Its total capacity is 50 passengers (including 14 on the front), in addition to the pilot and one crew member.

Her deck plan is rational and effective and provides good passenger flow, layout and seating have been designed for comfort. Passengers experience numerous improvements (electric or hybrid propulsion, quietness thanks to Soundproofing, underwater camera, underwater vision). Thanks to its solutions proposed by shipyard maintenance is made easy (engine hatch opens up for easy access, working bench is set in the front compartment, Pumps in place to renew engine oil, etc.)

Deck Layout

Plan 12 m 50 pax

Plan 12 m 50 pax

  • Main Specification
  • Propulsion
  • Performances
  • Pax Cat. 450
    Pax Cat. 335
    Hull TypeMono
    Hull Length11.70 m
    Hull Beam4.20 m
    Freeboard at boarding0.74 mm
    Loaded Draft1.05 m
    Light Air Draft(mast folded)3.30 m
    MaterialAluminium
    Light displacement 9.50 T
    Fresh water capacity100 L
    Black water capacity100 L
    Certification223B
    ArchitectEric JEAN
    Propulsion TypeDiesel
    Propulsion StyleInboard
    Propulsion Power2*
    Iveco 230 Hp
    Fuel capacity2*400 L
    Batteries TypeNA
    Battery Charger Input V/ANA
    Battery Charger Output V/ANA
    Charging TimeNA
    Max Speedapprox 20 knots
    Max Speed on batteriesNA
    Cruising speed on batteriesNA
    Autonomy @cruising speed on batteriesNA
    Range @cruising speed on batteriesNA
