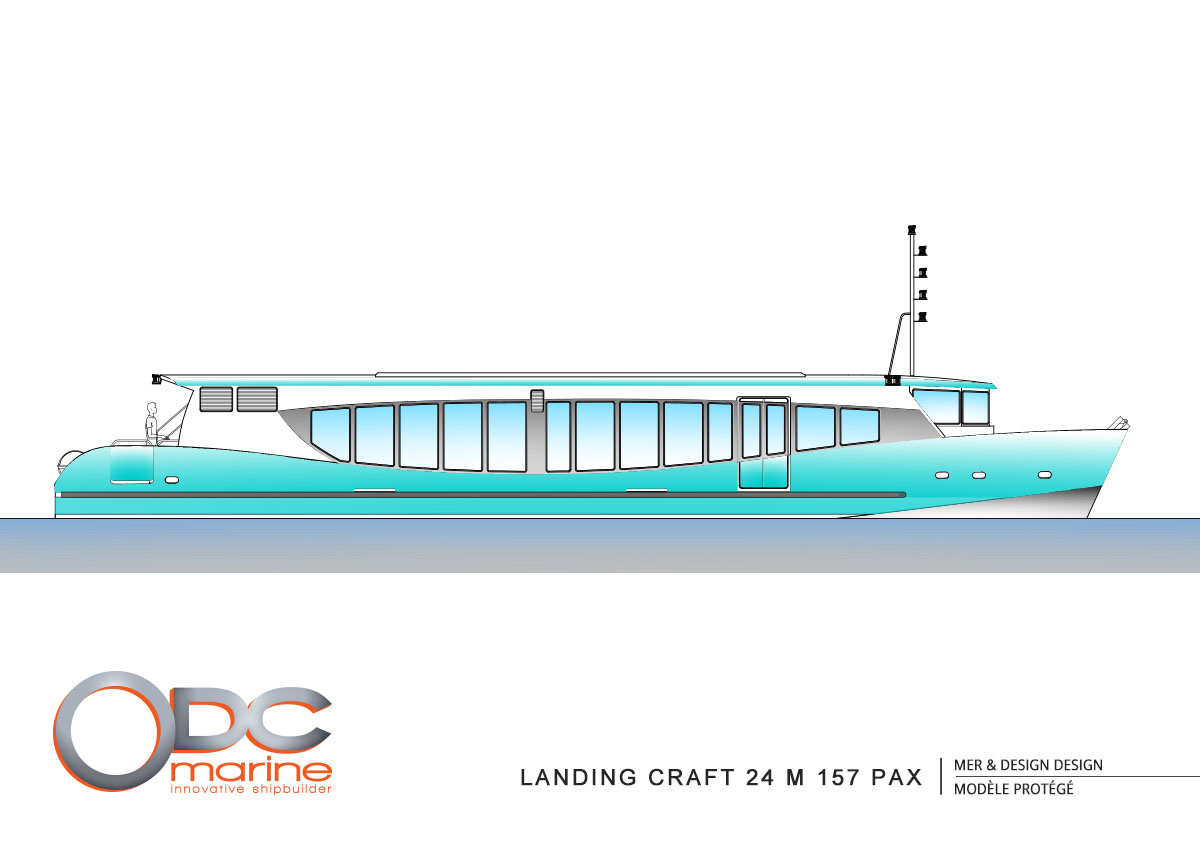

Landing Craft 24 m 157 pax hybrid

landingcraft 24m 150pax

Description

 -

Deck Layout

Plan landing craft 24m 150pax

Plan landing craft 24m 150pax

Plans landing craft 24m 150pax

  • Main Specification
  • Propulsion
  • Performances
  • Crew157
    Hull TypeMonohull
    Hull Length24.30 m
    Hull Beam5.40 m
    MaterialAluminium
    Light Displacement34 T
    Fresh Water Capacity200 L
    Black Water Capacity110 L
    Certification223B
    ArchitectMer&Design
    Propulsion TypeHybrid
    Propulsion StyleInboard
    Propulsion Power2*Caterpillar 500 Ch
    +2*80 Kw
    Fuel Capacity
    Batteries TypeLiFePO4
    Battery Charger Input V/A380 V
    Battery Charger Output V/A388 V / 2*30A
    Charging Time8 h
    Max Speed12 Knots
    Max Speed on batteries5 knots
    Cruising speed on batteries5 knots
    Autonomy @cruising speed on batteriesAppox 3h
    Range @cruising speed on batteriesApprox 15 NM
