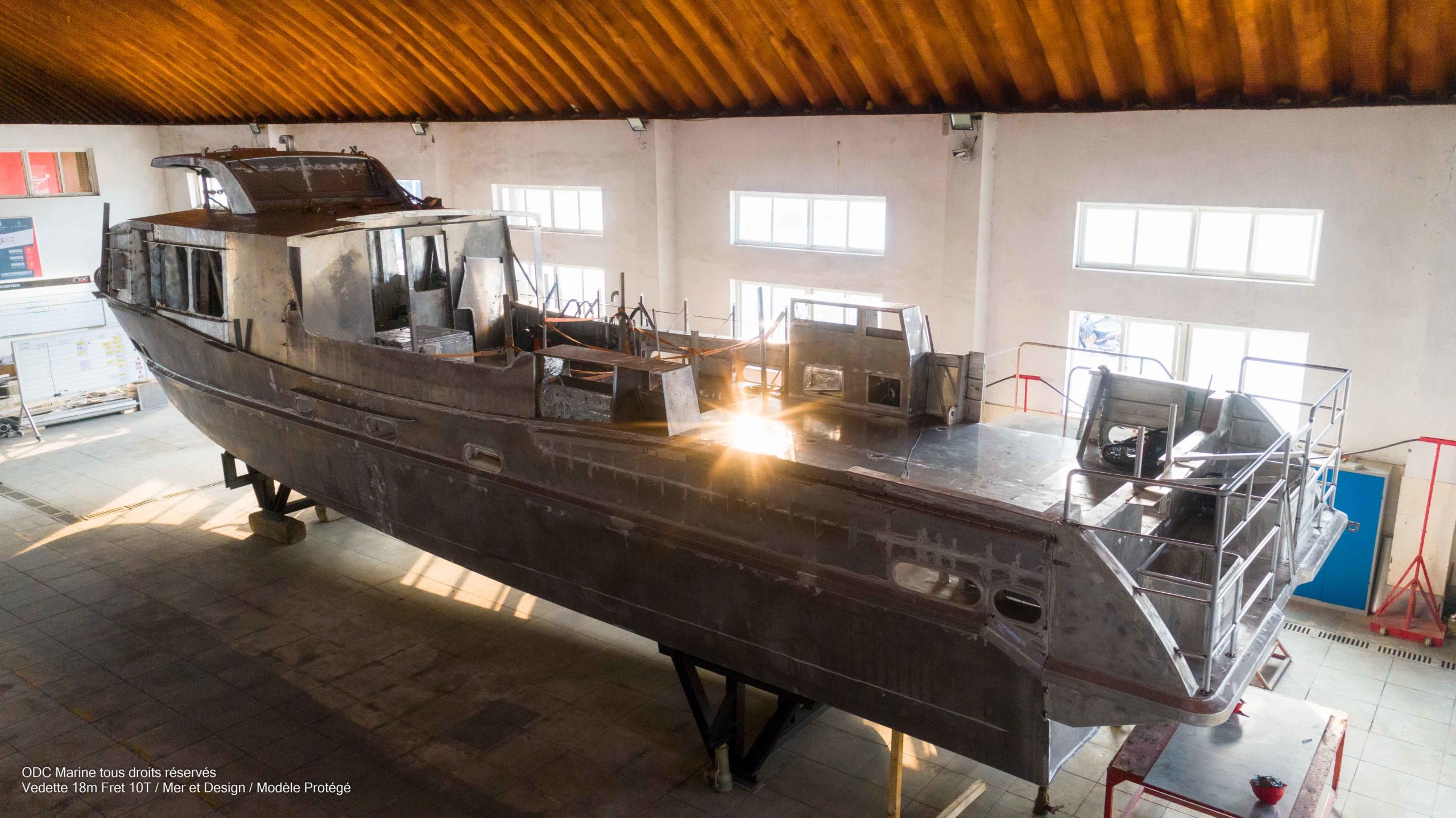

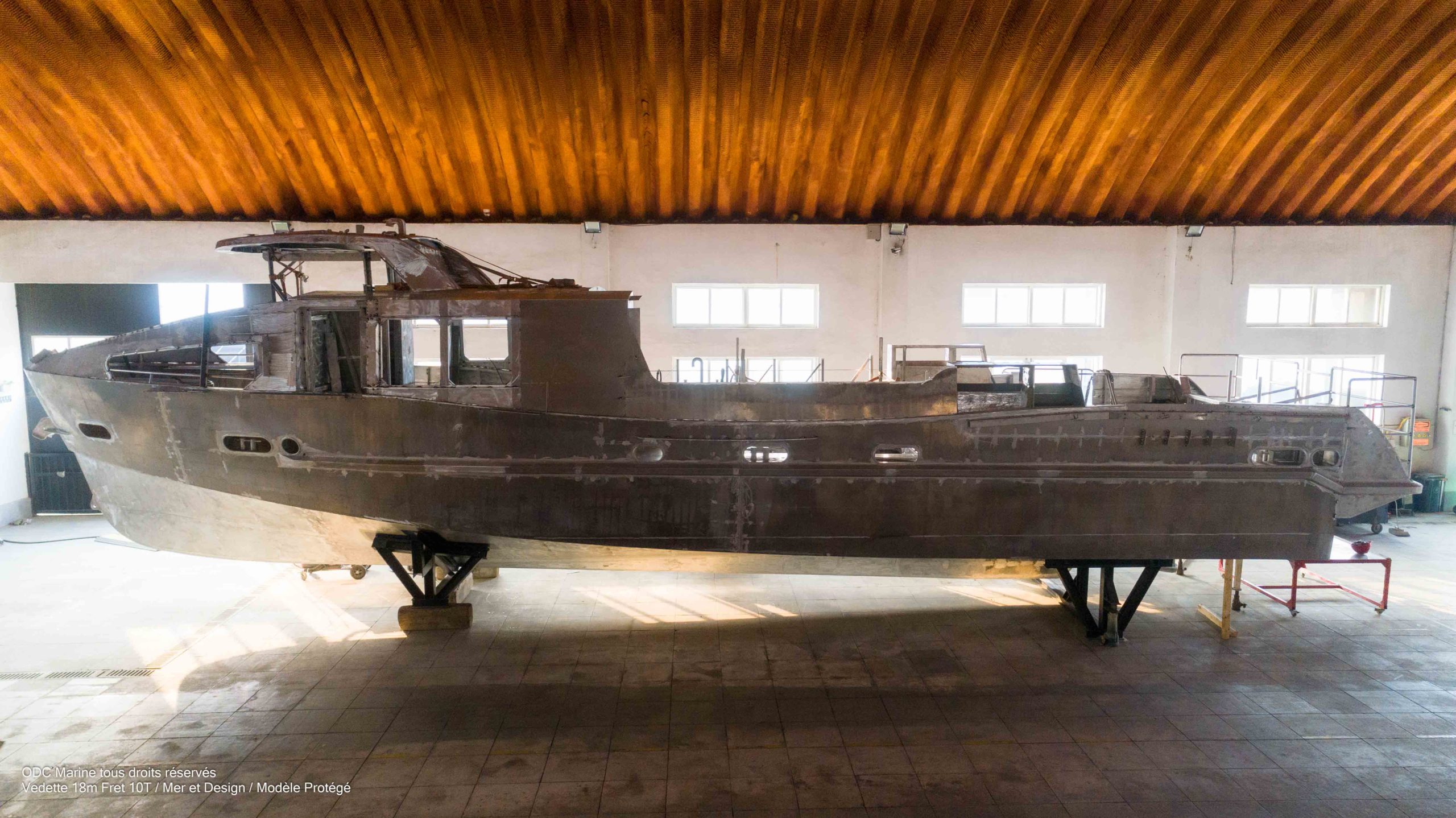

CARGO VESSEL 18M 10 TONS
This Aluminium Cargo and Passenger Shuttle 19.40m long and 4.70m wide is approved by Maritime affair French standards.
It’s total capacity is 12 passengers in 3rd categorie and 10T of Freight
TYPE OF VESSEL
Semi-planing monohull for Cargo and Passenger Transportation
SPECIFICATIONS
- Builder
- ODC Marine
- Naval Architect
- Mer et Design
- Construction material
- Marine Aluminium
CLASSIFICATION
Cargo vessel compliant with French regulation
- Drawing Approval by Bureau Veritas
- Building Survey by Bureau Veritas
- 2 shipyard visits by a Marine Affair Inspector are included in this offer
MAIN CHARACTERISTICS
- Rating
- 2000h/year
- Hull type
- Monohull
- Overall Length
- 19.40m
- Hull Length
- 18.00m
- Waterline Length
- 16.90m
- Beam
- 4.70m
- Moulded Depth
- 1.90m
- Loaded Draft
- 1.25m
- Passengers
- 12 in 3ème catégory
- Fresh Water Capacity
- 50L
- Black Water Capacity
- 50L
PROPULSION SYSTEM
Diesel
- Propulsion type
- Inboard Diesel
- Max. Power
- 2* Cummins QSL9 410HP @2100 RPM
- Gearboxes
- 2* ZF325-A
- Fuel Capacity
- 2* 800L
- Max. speed
- approx. 20 knots
- Engine Ventilation
- Input 2* 4000 m³/h + output 2* 2400 m³/h
- Shafts and propellers
- ZF
- Engine deck hatches on jack above engines
STEERING SYSTEM
- Pump and jack
- LS
- Helm angle sensor and indicator
- Hydraulic bypass and manual safety steering system
INTERIOR / FURNISHING
- Noise and Vibration Reduction System
- Aluminium honeycomb panel ceiling planking in wheelhouse and passenger saloon
- Glasses and Windows in wheelhouse and passenger saloon
- Fusion audio system
- 12 fireproof Aluminium passenger seats
- Confortable Pilot Seat
- 1 Dometic toilets
- LED lighting
SURFACE TREATMENT
- Mader waterborne painting cycle with low environmental impact Epoxy filler Treatment
NAVIGATION EQUIPEMENT
- Navigation system Simrad NSS9 evo2 GPS pack + GPS Antenna
- BR3G Simrad Radar
- 2 RS12 Simrad VHF
- 1 Sailor SP3520 portable VHF
- S100 Ocean Signal Transponder SART
- Lalizas Compass
- Ocean Signal E100G EPIRB Tag
ANCHORING SYSTEM
- 2300W Quick Electric Windlass
- Mooring
- Hight performance Rocna Anchor
ENERGY SOURCES
- 2 Optima engine packs
- 24V 75Amp
- 1 Optima windlass pack
- 24V 75Amp
- 1 service pack
- 24V 200Amp
- 1 safety pack
- 24V 150Amp
- 1 radio safety pack
- 12V 110Amp
- 2 battery charger
- 24V 30Amp
NAVIGATION LIGHTS
- Marinelec Regulatory Lights Supervision System
- Regulatory Lights
FIRE FIGHTING SYSTEM
- Marinelec Fire Detection System
- Saint-Gobain rockwool Engine room Fire Protection insulation
- Novec extingishing system
- Main bilge pump on one thermal engine + fire hose
- Additional independent diesel pump on deck
BILGE SYSTEM
- Marinelec Water Detection System
- Thermal engine driven valved pipe system enabling draining of each compartment
- Independant diesel pump can be plugged into pipe network
EVACUATION SYSTEM
- Approved Safety System
- Pneumatic lifting of rafts initiated from the wheelhouse
OPTIONS
Related to Freight
- 3.5T/M M40.60A1 Guerra hydraulic crane driven by thermal engine and 670Kg winch
- 3.5 m³ refrigerated hold
OPTIONS
Related to Propulsion
Diesel Engine Upgrade
- 2* Volvo D13 500HP @1800RMP + 2* ZF360A
- Engine Catalytic Converter (2* Volvo D13 500HP @1800RPM)
OPTIONS
Related to Equipement
- Wheelhouse Aircon Frigomar 6.000BTU / 1.5kW
- Wheelhouse and passenger lounge Aircon Frigomar 15.000BTU
- Wheelhouse & passenger lounge Flexiteek 2G Decking
- Océan 3 Fenders
- 11kW Onan genset
- 4kW electric heater for passenger lounge and wheelhouse
- 10kW bow thruster
- SCV Code
- LS Electro-hydraulic pump
- Simrad autopilot + Gyrocompass
- 8 Camera Video System – Engine room monitoring and navigation assistance
- SS60 Airmar Depth Sensor
- EEBD Lalizas – Emergency Evacuation Breathing Device
- VIP upholstered seat
- Spare Upholstery
OPTION
Related to Connectivity
- Vessel Monitoring System
Bildge monitoring (replacing the Marinelec central panel)
Navigation lights monitoring (replacing the Marinelec control panel)
Service and batteres pack, windlass / bow thruster monitoring
Tanks monitoring (diesel, fresh water, black water)
Diesel engine monitoring
GPS Monitoring
Insulation monitoring between electrical circuits and hull
Structure vertical acceleration monitoring
4G connectivity and remote operator interface
