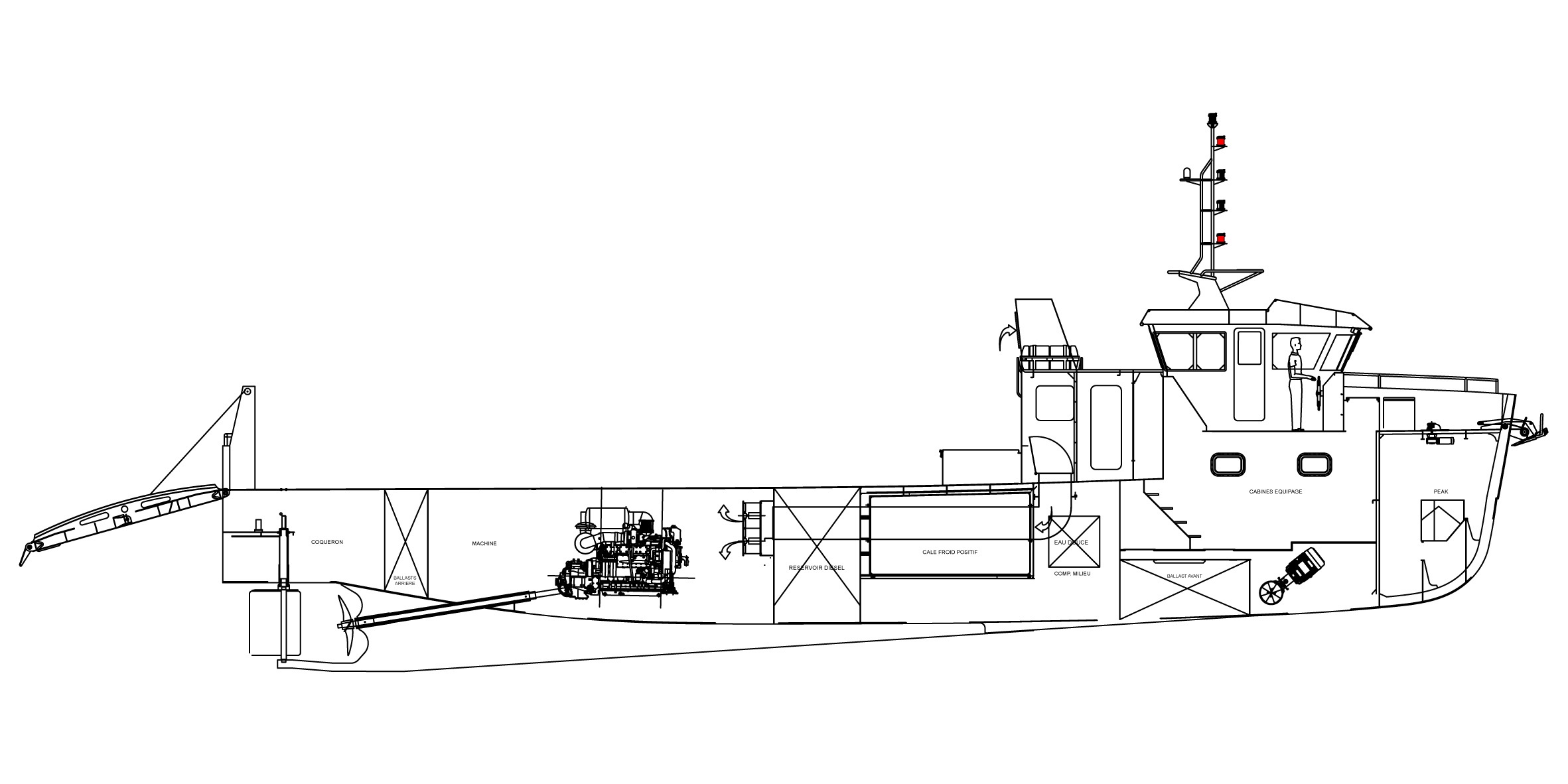

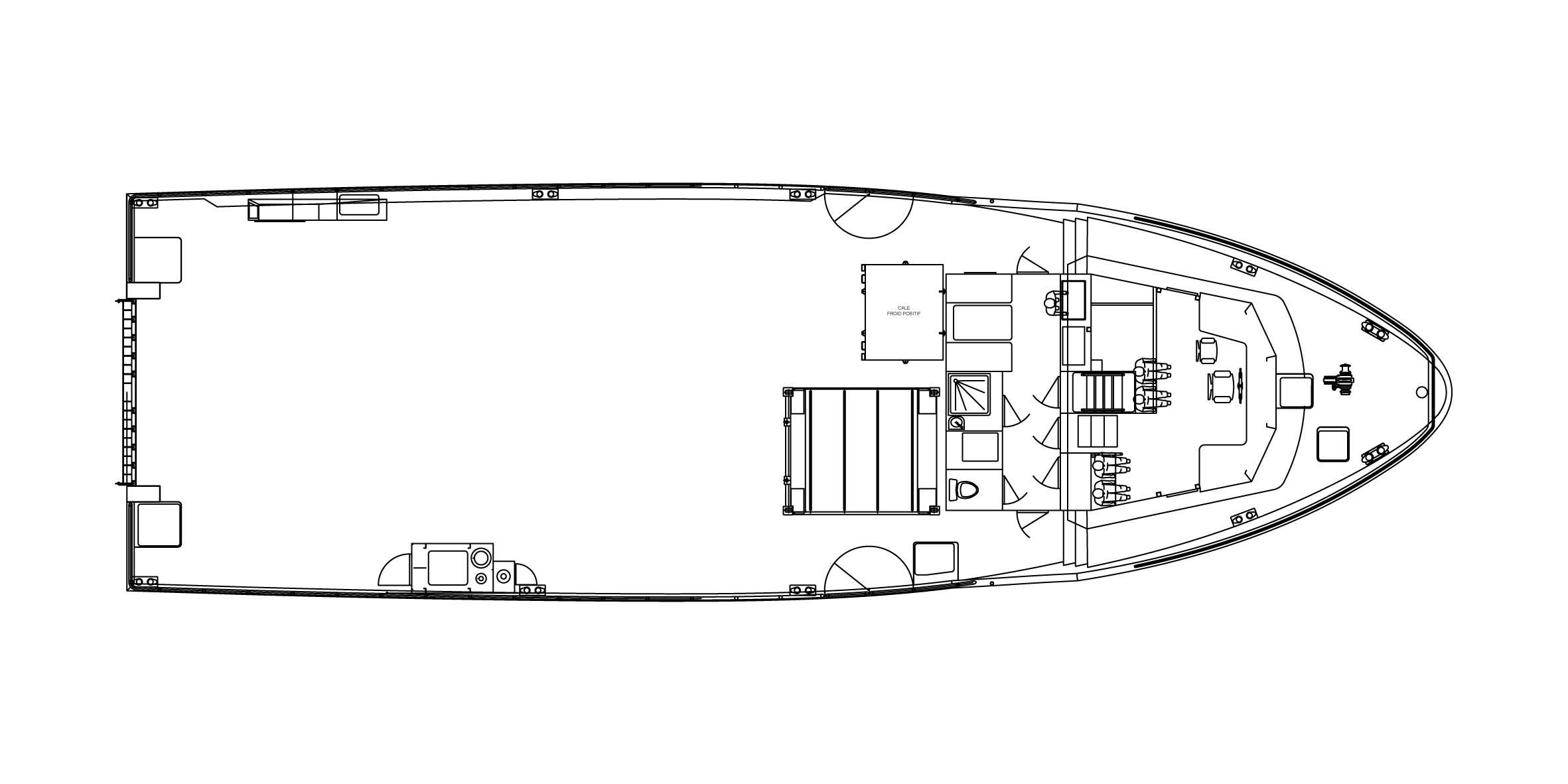

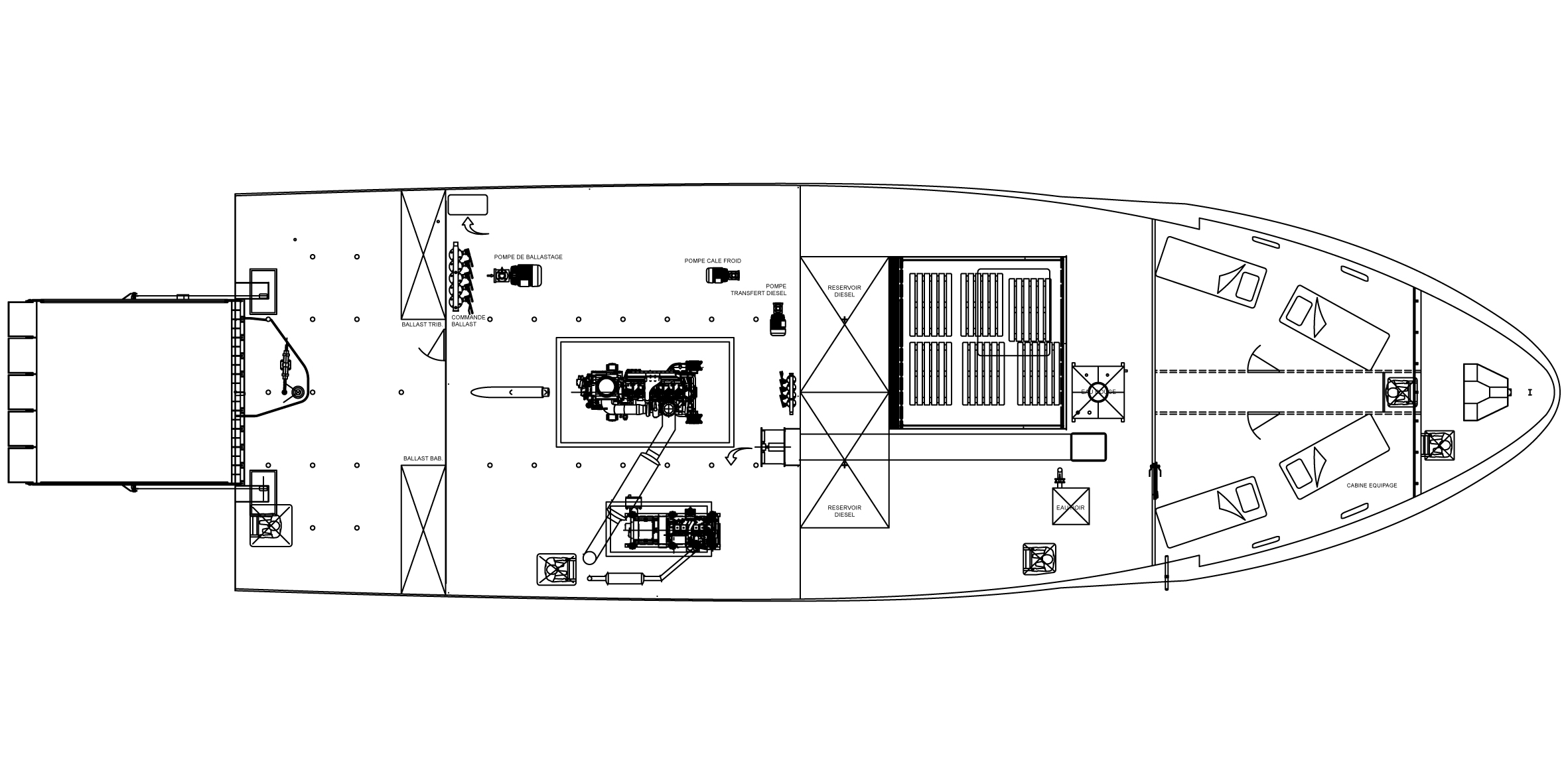

CARGO VESSEL 26M 60 TONS
This Aluminium Cargo Vessel, 25.40m long and 8.00m wide is dedicated to the cargo transportation and approved by the Maritime French standards.
It freigth capacity is 60 tons including a 10m³ positive cold hold
TYPE OF VESSEL
Displacement monohull for cargo transportation
SPECIFICATIONS
- Builder
- ODC Marine
- Naval Architect
- Mer et Design
- Construction material
- Marine Aluminium
CLASSIFICATION
Cargo vessel compliant with French regulation
- Drawing Approval by Bureau Veritas
- Building Survey by Bureau Veritas
- Shipyard visits by Marine Affairs
MAIN CHARACTERISTICS
- Rating
- 3000 h/year
- Hull type
- Monohull
- Overall Length
- 25.40m
- Overall Length with loading ramp option
- 26.70m
- Hull Length
- 25.40m
- Beam
- 8.00m
- Moulded Depth
- 2.50m
- Loaded Draft
- 2.45m
- Crew
- 4
- Freigth capacity
- 60t
- Fresh water capacity
- 1000L
- Black water capacity
- 300L
PROPULSION SYSTEM
Diesel
- Propulsion Type
- Inboard Diesel
- Max. Power
- 1* Cummins QSK 19M 800 HP @1800 rpm
- Gearboxes
- ZF 2150A
- Fuel capacity
- 2* 10 000L
- Cruise speed
- approx. 10 knots
- Engine ventilation
- Input 12 000 m³/h + output 5000 m³/h
- Shafts and propellers
- ZF
STEERING SYSTEM
- Pump and jack
- LS
- Helm angle sensor and indicator
- Hydraulic bypass and manual safety steering system
ENERGY SOURCES
- 1 Optima engine pack
- 24V 75 Amp
- 1 Service pack
- 24V 200 Amp
- 1 Safety pack
- 24V 150 Amp
- 1 Radio safety pack
- 12V 110 Amp
- 2 battery chargers
- 24V 30 Amp
- Onan genset
- 220V 11 kW @1500 rpm
INTERIOR / FURNISHING
- Noise and Vibration Reduction System
- Thermic wheelhouse insulation
- Aluminium honeycomb panel ceiling planking in wheelhouse
- Glasses and Windows in wheelhouse
- Fusion Audio System
- Confortable Pilot & Co-pilot seat
- LED lighting
- Eclairage LED
ANCHORING SYSTEM
- Horizontal electric windlass
- 24V 4 kW
- Mooring
- High performance Rocna Anchor
NAVIGATION EQUIPEMENT
- NSS12 Simrad navigation system
- BR3G Simrad radar
- 2 RS12 Simrad VHF
- 1 SP3520 Sailor portable VHF
- S100 Ocean Signal Transponder SART
- Lalizas Compass
- E100G EPIRB Ocean Signal Tag
- Vessel Monitoring System
Bildge monitoring
Navigation lights monitoring
Batteries pack monitoring (service, safety, engine, genset, windlass)
Tanks monitoring (diesel, fresh water, black water, ballast)
Diesel engine & genset monitoring
GPS Monitoring
Insulation monitoring between electrical circuits and hull
Structure vertical acceleration monitoring
3G connectivity and remote operator interface
NAVIGATION LIGHTS
- Marinelec Regulatory Lights Supervision System
- Regulatory Lights
FIRE FIGHTING SYSTEM
- Marinelec Fire Detection System
- Saint-Gobain rockwool engine room Fire Protection insulation
- Novec extingishing system
- Main fire fighting pump on one thermal engine + fire hose
- Additional independant diesel pump on deck
- Safety electrical fire fighting pump on genset
BILGE SYSTEM
- Marinelec Water Detection System
- Thermal engine driven valved pipe system enabling draining of each compartment
- Independant diesel pump can be plugged into pipe network
- Safety electrical bilge pump on genset
EVACUATION SYSTEM
- Approved Safety System
OPTIONS
Related to Propulsion
Diesel Engine Upgrade
- 1 Baudouin 12 M26.2 1000 HP @1800 rpm + ZF3055A
- 2* Volvo D13 500 HP @1800 rpm + 2* ZF360A
- Engine(s) & Genset Keel cooling (involve dry exhaust)
- Driving place on flybridge
SCR Catalyst System
- SCR Catalyst System
(2* Volvo D13 500 HP @1800 rpm)
(Selective Catalyst System – IMO III / EPA IV compliant)
OPTIONS
Related to Freight
- 4m * 3.5m aluminum loading ramp on 220V cables electric winchs
- Additional aluminum loading ramp
- Reinforced freight area with 30mm wood floorboard
- 5kW 10 m³ refrigerated hold + loading electrical hoist
- Ballast and ballast system with 220V 3kW electric pump – 20m³/h
- 3.5T/M M40.60A1 Guerra hydraulic crane driven by thermal engine and 670Kg winch
- Xiling CBD15W-LIX 1.5T electric pallet truck
OPTIONS
Related to Equipment
- 380V 68kW @1500 rpm Cummins genset
- 220V 27kW @1500 rpm Onan genset
- 220V 11kW @1500 rpm Onan genset
- 4 beds crew station, 4 storages and a shower
- 380V | 37kW | 430mm | 500kg Wesmar bow thruster
- Mader waterborne painting cycle with low environmental impact Epoxy filler Treatment
- 4 kW 40 000 BTU wheelhouse & crew station air/air AC
- SCV code
- LS Electro-hydraulic pump
- Simrad autopilot + Gyrocompass
- 8 Camera Video System – Engine room monitoring and navigation assistance
- 220V / 1kW Gianneschi black water pump
- Coupled pump with bronze impeller instead of neoprene impeller
- SS60 Airmar Depth Sensor
- Low environment impact antifouling
