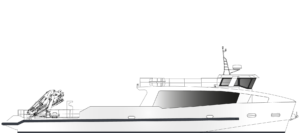

Yacht Support Vessel
21 m

• BuilderODC Marine
• Naval ArchitectMer et Design
• Construction MaterialMarine-grade Aluminium

• Rating2 000h/year
• Overall Length21,40 m
• Hull Length20,00 m
• Waterline Length19,15 m
• Beam5,80 m
• Moulded Depth2,15 m
• Loaded Draft1,50 m
• Crew and Guest Capacity16
• Propulsion2 × 700 hp
• Fuel Capacity2 x 1 750 L
• Fresh Water Capacity150 L
• Black Water Capacity150 L
• Toys and Equipment Capacity15 tons

• Noise and Vibration Reduction System
• Aluminium Honeycomb Panel Ceiling in Wheelhouse and Cabin
• Glasses and Windows in Wheelhouse and Cabin
• Audio System
• Standard Pilot Seat
• LED Lighting
• 4 Beds Crew Station
• 2 Crew and Guest Sanitaries
• Galley and Crew Table / Seating

• Topsides: Waterborne Paint System with Low Environmental Impact; Epoxy Filler Finish
• Underside: Anti-Fouling Paint

• Engines2 × Scania DI16 072M – 700 hp @ 2,100 rpm
• Gearboxes2 × ZF 510-1 A
• Shafts and PropellersZF, 4 pales, classe S
• Engine VentilationInput 2 × 8,000 m³/h - Output 2 × 4,000 m³/h

• LS Pump and Ram
• Helm Angle Sensor and Indicator
• Hydraulic Bypass and Manual Emergency Steering System

• Loading Capacity15 tons

• 2 × Optima Engines Battery Packs24 V, 75 Ah
• 1 × Service Battery Pack24 V, 200 Ah
• 1 × Battery Charger24 V, 30 Ah

• Simrad NSS9 evo3 GPS System with GPS Antenna
• Simrad RS20S VHF Radio
• Lalizas Magnetic Compass

• Electric Windlass 3 kW
• High-Performance Rocna Mooring Anchor

• Fire Detection System
• Rockwool Fire Insulation in Engine Room
• Extinguishing System

• Water Detection System
• Bilge Pump Driven by One Engine + Pipe Network
• Additional Backup Diesel Pump Connected to Pipe Network

• Approved Safety Equipment

• Regulatory Navigation Lights

Propulsion Upgrade - Parallel Hybrid - Standard Version (1.5 h at 6 knots)

• Propulsion typeInbord Hybrid
• Diesel propulsion2 × Scania DI16 072M – 700 hp @ 2,100 rpm
• Fuel Capacity2 x 1 750 L
• Electric motors2 × 80 kW
• Battery power88 kWh
• Battery typeLithium Iron Phosphate
• Battery charger400 V, 32 A
• Diesel max. speedapprox. 20 knots
• Electric max. speedapprox. 8.5 knots
• Electric cruising speedapprox. 6 knots
• Range at electric cruising speed1 h 30 at 6 knots
• Vessel Monitoring System

Propulsion Upgrade - Parallel Hybrid - Long Range (3 h at 6 knots)

• Propulsion typeInbord Electric
• Diesel poropulsion2 × Scania DI16 072M – 700 hp @ 2,100 rpm
• Fuel Capacity2 x 1 750 L
• Electric motors2 × 80 kW
• Battery power177 kWh
• Battery typeLithium Iron Phosphate
• Battery charger400 V, 54 A
• Diesel max. speedapprox. 20 knots
• Electric max. speedapprox. 8.5 knots
• Electric cruising speedapprox. 6 knots
• Range at electric cruising speed3 h at 6 knots
• Range at electric cruising speed

100% Electric Propulsion (9 h at 6 knots)

• Propulsion typeInbord Electric
• Electric motors2 × 80 kW
• Battery power2 × 350 kWh
• Battery typeLithium Iron Phosphate
• Battery charger400 V, 2 × 73 A
• Cruising speedapprox. 6 knots
• Range at electric cruising speed9 h at 6 knots
• Vessel Monitoring System

Diesel Engine Upgrade

• 2 × Caterpillar C18 – 814 hp @ 1,800 rpm + 2 × ZF 655 A

Diesel Engine Upgrade

• 2 × Volvo D16 – 750 hp @ 1,900 rpm + 2 × ZF 665 A
• SCR Catalyst System - 2 × Volvo D16 – 750 hp @ 1,900 rpm

Diesel Engine Upgrade

• 2 × Baudouin 6M26.3 – 750 hp @ 2,100 rpm + 2 × ZF 665 A

Diesel Engine Downgrade

• 2 × Volvo D13 – 600 hp @ 1,900 rpm + 2 × ZF 400 A
• SCR Catalyst System - 2 × Volvo D13 – 600 hp @ 1,900 rpm
• Engines Keel Cooling – Duramax Marine 2 × Volvo D13 – 600 hp

Diesel Engine Downgrade

• 2 × Volvo D13 – 500 hp @ 1,800 rpm + 2 × ZF 400 A
• SCR Catalyst System 2 × Volvo D13 – 500 hp @ 1,800 rpm
• Engines Keel Cooling – Duramax Marine 2 × Volvo D13 – 500 hp

Diesel Engine Downgrade

• 2 × Cummins QSL9 – 450 hp @ 2,100 rpm + 2 × ZF 325 A
• Double-Walled Fuel Line - 2 × Cummins QSL9 – 450 hp
• Engines Keel Cooling – Duramax Marine 2 × Cummins QSL9 – 450 hp
• SCR Catalyst System 2 × Cummins QSL9 – 450 hp @ 2,100 rpm

• Guerra Hydraulic Crane Coupled to One Engine - M80.20A1, 7.5 tm + 825 kg Winch
• Guerra Hydraulic Crane Coupled to One Engine - M42.20A1, 3.5 tm + 670 kg Winch
• Refrigerated Hold 3.5 m³, 4 kW
• Additional 5,000 L Diesel and 800 L Fresh Water Tanks with Pumps
• Watermaker Schenker ZEN 100 220 V, 100 L/h
• Diver Compressor Bauer Junior II-W 100 L/min
• 2 × Dryer Machines Panasonic 9kg NH-9095D
• 2 × Washing Machines Panasonic 10kg XQG100-L165
• Integrated Gas Cooktop, Exhaust Hood, 61 L Oven and Microwave Oven Westinghouse JJZT-WL05
• Gaz BBQ WalPole
• Fridge Hoshizaki 600L HR-78MA-P
• 2 × Freezers Hoshizaki 600L HF-78MA-P
• Ice Maker Hoshizaki IM-30CA
• Karcher HD 6/15M 220

• Seakeeper 9 Stabilizer
• Quick Stabilizer MC2 30K, 6.0 kW
• Wheelhouse Air Conditioning – Blue-Airco 10,000 BTU, 820 W
• Wheelhouse and Cabin Marine Air Conditioning 15,000 BTU
• Wheelhouse and Cabin Air/Air Air Conditioning 15,000 BTU
• Flexiteek 2G On Front Deck, Front Seats and Front Table
• Forward Access Onboard
• Onan genset - 220 V, 11 kW @ 1,500 rpm
• Onan Genset - 220 V, 17.5 kW @ 1,500 rpm
• Onan Genset - 220 V, 27 kW @ 1,500 rpm
• 4 kW Electric Heater for Saloon and Wheelhouse
• 12 kW Bow Thruster
• LS Electro-Hydraulic Pump
• Converter 400 VDC to 220 VAC, 5 kW
• Simrad Autopilot + Gyrocompass
• 1.4 kW Solar Panels
• 8-camera Video System - Engine room monitoring and navigation assistance
• Gianneschi Black Water Pump – 220 V, 1 kW
• Maintenance Toolbox
• Toolbox Upgrade for Electric Propulsion
• Airmar 110WX Weather Station
• AIS NAIS-500 with GPS and VHF Antennas
• Mooring Pack - 6 × F10 Fenders and 4 × 20 m, 25 mm Mooring Ropes
• Coupled Pump with Bronze Impeller (Replacing Neoprene Impeller)
• Airmar SS60 Depth Sensor
• Spare Anode Set
• 4 × Hanging Anodes

Vessel Monitoring System

• Bilge Monitoring
• Navigation Lights Monitoring
• Service, Windlass, and Bow Thruster Battery Packs Monitoring
• Tanks Monitoring - Diesel, Fresh Water, Black Water
• Diesel Engine Monitoring
• GPS Monitoring
• Lithium Battery Pack Monitoring
• Electric Motors Monitoring
• Insulation Monitoring Between Electrical Circuits and Hull
• Structural Vertical Acceleration Monitoring
• Wi-Fi Connectivity
