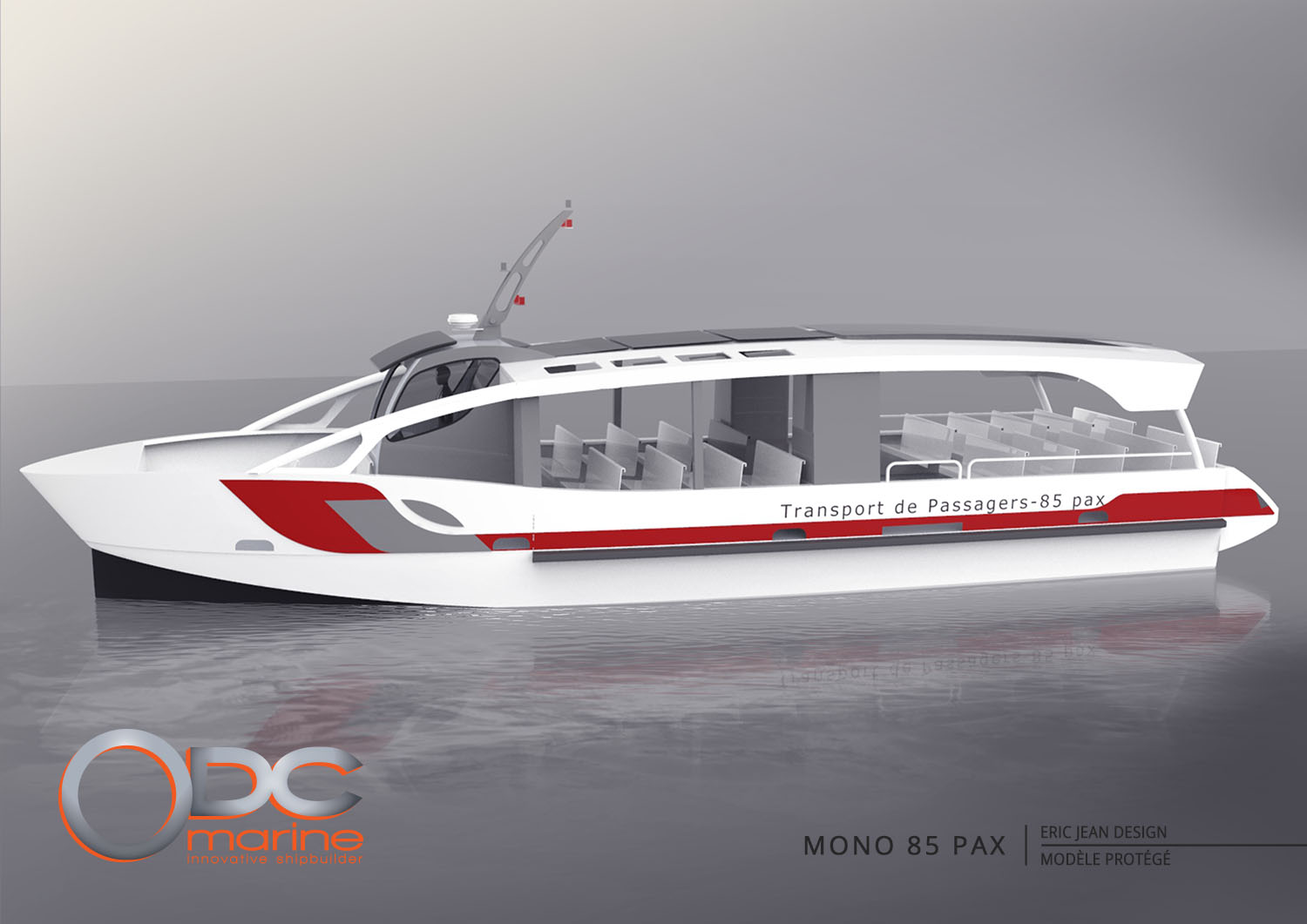

Mono 16 m 85 pax diesel

Mono 16m 85pax

Description

This aluminum passengers shuttle, 16 m long and 4.6 m wide, is approved to maritime French standards. Its total capacity is 86 passengers (including 28 on the front), in addition to the pilot and two crew members.

Her deck plan is rational and effective and provides good passenger flow, layout and seating have been designed for comfort. Passengers experience numerous improvements (electric or hybrid propulsion, quietness thanks to Soundproofing, underwater camera, underwater vision). Thanks to its solutions proposed by shipyard maintenance is made easy (engine hatch opens up for easy access, working bench is set in the front compartment, Pumps in place to renew engine oil, etc.)

Deck Layout

Plan 16 m 85 pax

Plan 16 m 85 pax

  • Main Specification
  • Propulsion
  • Performances
  • Pax Cat. 485
    Pax Cat. 360
    Hull TypeMono
    Hull Length15.90 m
    Hull Beam4.60 m
    Freeboard at boarding0.86 m
    Loaded Draft1.25 m
    Light Air Draft(mast folded)3.60 m
    MaterialAluminium
    Light displacement 14.50 T
    Fresh water capacity130 L
    Black water capacity2*85 L
    Certification223B
    ArchitectEric JEAN
    Propulsion TypeDiesel
    Propulsion StyleInboard
    Propulsion Power2*
    Cummins 405 Ch
    Fuel capacity2*700 L
    Batteries TypeNA
    Battery Charger Input V/ANA
    Battery Charger Output V/ANA
    Charging TimeNA
    Max Speedapprox 20 knots
    Max Speed on batteriesNA
    Cruising speed on batteriesNA
    Autonomy @cruising speed on batteriesNA
    Range @cruising speed on batteriesNA
